SP-AP-AB1208 Ionizing Air Source AC Pulse Ion Bar

Position：A Safe electronic world » Ionizers » Ionizing Air Bar » SP-AP-AB1208 Ionizing Air Source AC Pulse Ion Bar

Product title：SP-AP-AB1208 Ionizing Air Source AC Pulse Ion Bar

Product detail：-With alarm function of high voltage fault -Fast speed of static removing, low ion balance and high safety -Remote control ion output

SP-AP-AB1208 Air Source AC Pulse Ion Bar

ionizing air bar 1.png

◆ Product Feature

1.Bar shaped and cross over static eliminator

2.Adjustable positive and negative ion output rate

3.Manufactured by using the latest patented technology of static removing

4.Fast speed of static removing, low ion balance and high safety

5.Adjustable positive and negative ion frequency

6.With alarm function of high voltage fault

7.Remote control ion output

8.Shock-proof function prevent user from being electric shocked

9.Support integrate control ,easy to operate.



◆Specification

Model No.	AP-AB1208
Input Voltage	DC 24V
Input current	＜600mA
Power	10W
Working Voltage	±5000V
Working method	Pulse AC
Emitter electrode	SUS
Discharge structure	Resistance coupling
Output frequency	1,3,5,10,20,30,50Hz；(Factory setting:30Hz)
Duty Ratio	10%—90%
Working range	LWH：{385-410（Probe distance 25mm）；460-2960（Probe distance 50mm）}3001000mm
Working distance	100→1000mm
Ion balance	≤\|±30V\|（AVE）
Discharge speed	≤2S
Warning indicate	Power input indicator，High Voltage indicator（Green is normal，Red is abnormal）
Status monitoring	Series network monitoring / wireless monitoring
Airflow pressure	≤0.6MPa
air source connector With throttle valve	Φ8-G1/8 Black
Working temperature	0℃-50℃
Working humidity	＜70%
Dimension	LWH：{385-410（Probe distance25mm）；460-2960（Probe distance50mm）}3578.4mm
Bar body material	Flame retardant PVC、ABS、AL、SUS
Accessories	Flexible 180° install bracket
Power adapter	GRT-240200： DC24V 2A，Dual network port output，1236140.5mm（LWH）
Power adapter cable length	2.5m
Warranty	1 Year
Certificate	CE

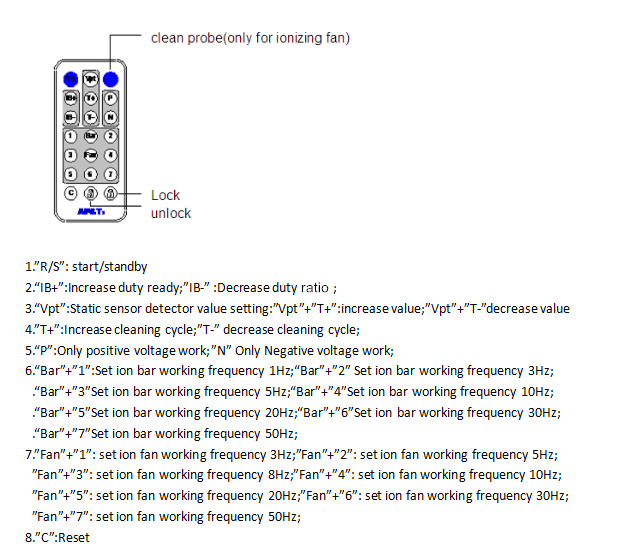

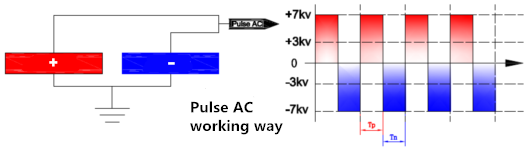

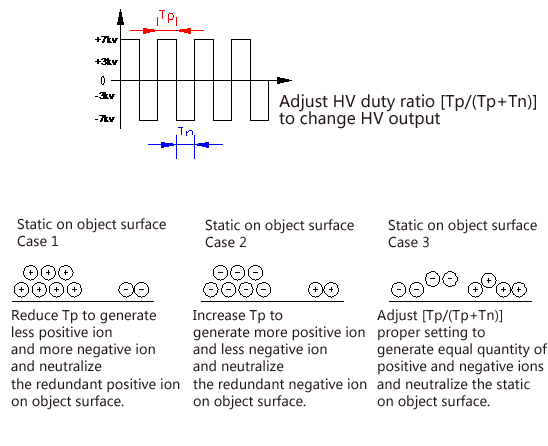

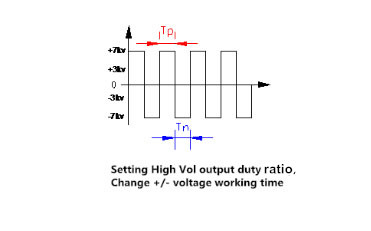

◆Working Ways（AC）



◆Elimination Effect

Testing instrument ：3M-711 Static tester

Testing standard：ESD.STM3.1-2000；SJ/T 11446—2013

Testing voltage ：±1000 — ±100V Attenuation

Testing environment ：Humidity50±5% Temperature:23±3℃

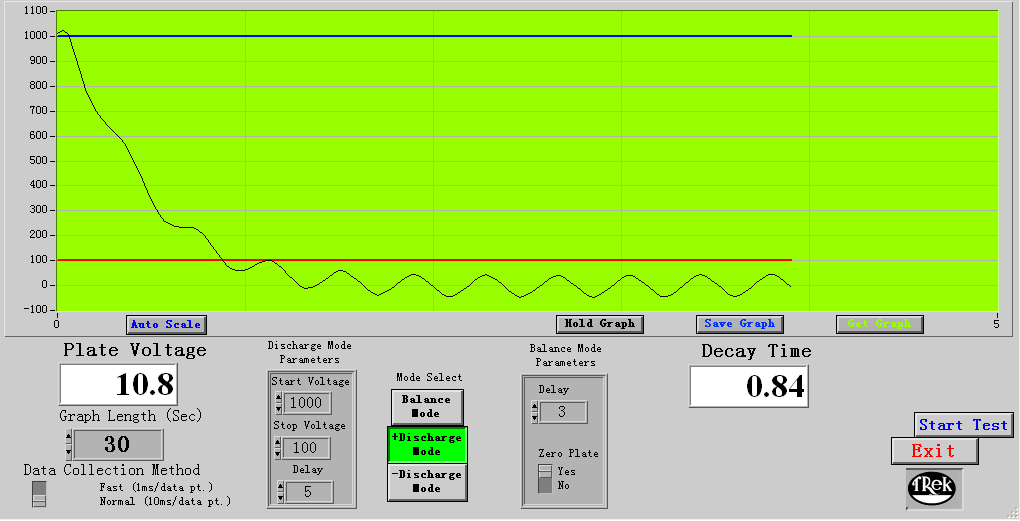

Testing data as below（Testing distance:300mm,Ion bar width:880mm,Airflow:0.3Mpa，Frequency:30Hz）：

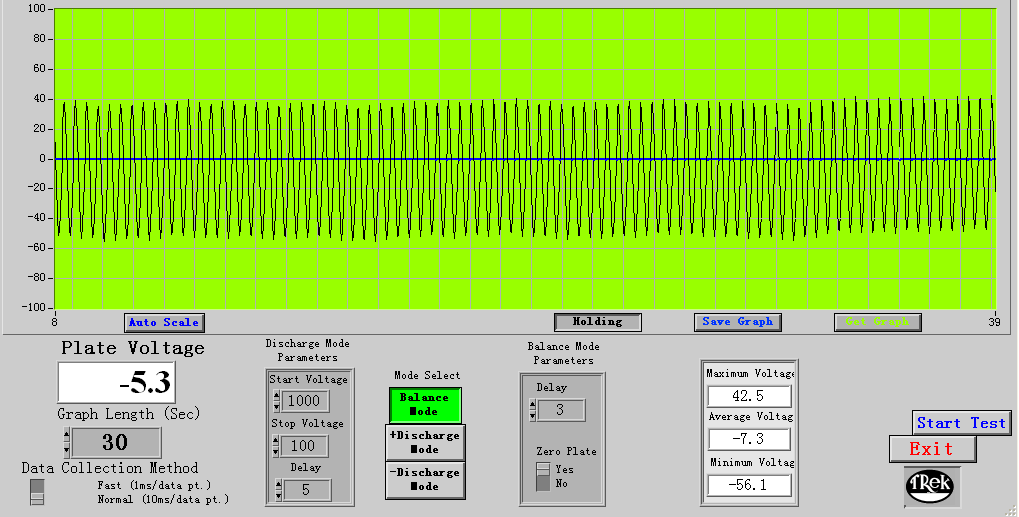

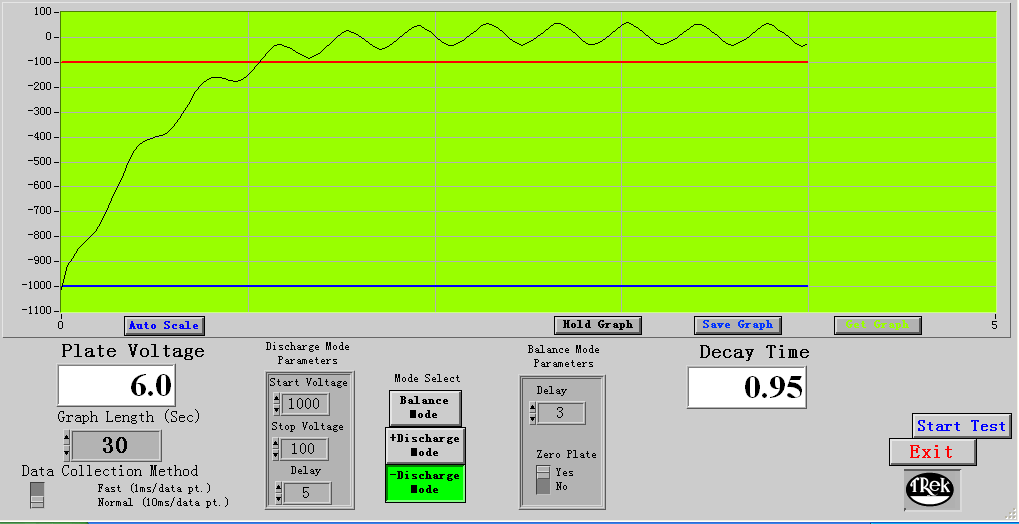

图片7.png 图片8.png

Test standard：ANSI/ESD.STM3.1，ANSI/ESD.SP3.3，SJ/T 11446—2013

Test Device：Trek157 static detector

Test Voltage：±1000V → ±100V attenuation

Test environment：Humidity 50±5%；Temperature23±3℃

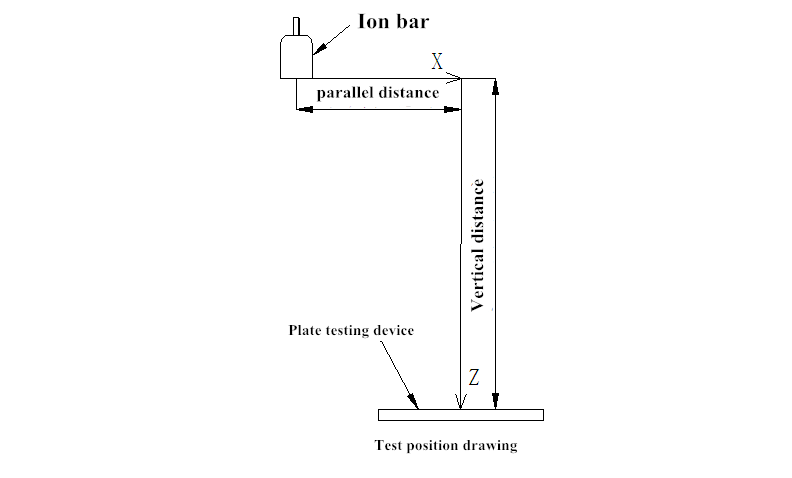

Other test environment,test result as below:


Ion bar length：385mm；Working frequency：30Hz；
Test distance（mm）		Air flow pressure（MPa）Note 1*	Duty ratio(%)	Discharge ability
Test distance（mm）				+ discharge speed（S）	- discharge speed（S）	Ion balance（V）
Vertical	parallel			+ discharge speed（S）	- discharge speed（S）	Ion balance（V）
300	-150	0.2	49	2.7	2.9	-0.7
	0		52	0.5	0.5	4.1
	150		49	2.9	3	-0.7
	-150	0.4	49	1.3	1.5	-5
	0		50	0.2	0.2	12.9
	150		49	1.6	1.9	-2.4
	-150	0.6	49	1.1	1.2	-3.8
	0		49	0.1	0.2	-11.6
	150		49	1.3	1.2	13.1
500	-150	0.2	50	2.6	3.1	-5.6
	0		51	1.1	1.3	-2.6
	150		51	2.9	3.1	2.2
	-150	0.4	49	1.5	1.8	-5.9
	0		49	0.6	0.8	-15
	150		50	1.8	1.6	11.7
	-150	0.6	49	0.9	1.2	-3.9
	0		49	0.4	0.6	-4.6
	150		49	1.2	1.4	-2.6
600	-150	0.2	50	1.8	2.4	-3.4
	0		51	1.3	1.7	1.2
	150		50	2.1	2.6	-2.4
	-150	0.4	50	1.1	1.2	9.1
	0		49	0.7	1	-4.6
	150		49	1.1	1.4	-3.7
	-150	0.6	49	0.7	0.9	-3.4
	0		49	0.5	0.7	-6.8
	150		49	0.9	1.1	-1.3
Notice *：1——Real-time airflow pressure values** The ion balance performance will have difference depend on bar length,airflow pressure,working frequency,install distance;It should be adjusted duty ratio according to real working environment to make ion balance in best.
