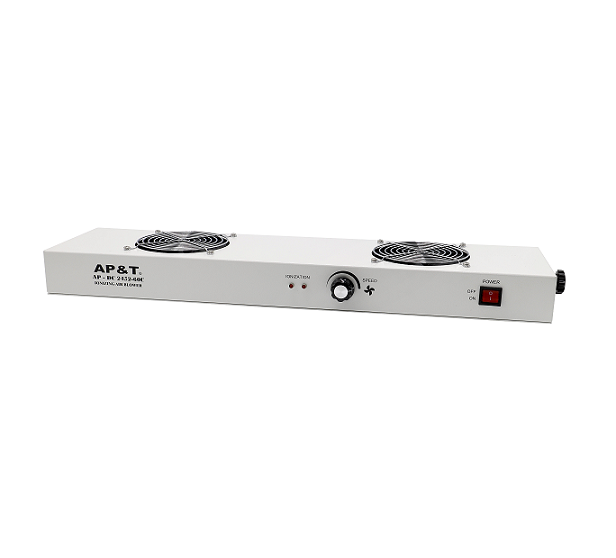

AP-DC2452-60C

Auto Clean Two-fan Overhead Ionizing Air Blower

◆ Product Feature

1、 Fit for static elimination in large area

2、 Auto cleaning function.

3、The combination of multi-units independent ion transmitting

4、Stepless adjustment of the air volume and longer lifetime of the fan

5、Fast speed of the elimination and stable performance of the circuit

6、Detachable cover net both front and back, convenient to clean and maintain

◆ Industry Applications

Widely Used in electronics, optoelectronics, semiconductors, plastics, films and printing industries

◆ Specification

Model               AP-DC2452-60C

Working Voltage        DC12V

Input Voltage          AC220V  50HZ

Power              15W

Discharge time          ≤3s(H 450mm to center, 1000V ～100V descent)

Ion Balancing           ≤ ±10V（match ESD STM3.1-2000；IEC 61340-5-1 standard）

Air volume(adjustable)  ≤2*90CFM

Noise                   ≤ 45db（150mm to blower）

Ozone thickness      ≤0.01ppm  (150mm to nozzle center)

Working temperature     0°C - 50°C

Effective scope         600*300*750mm（L*W*H）

Dimension and weight    640*175*118mm（L*W*H

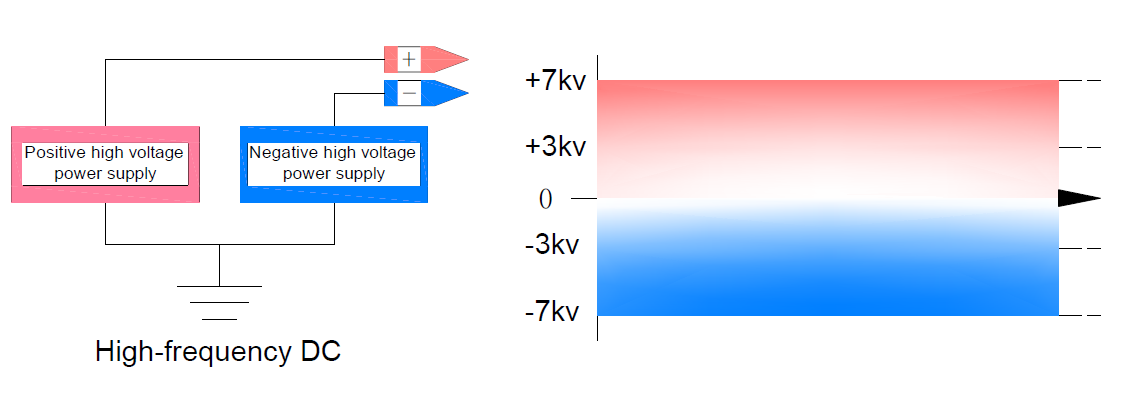

◆ Working Ways（DC）

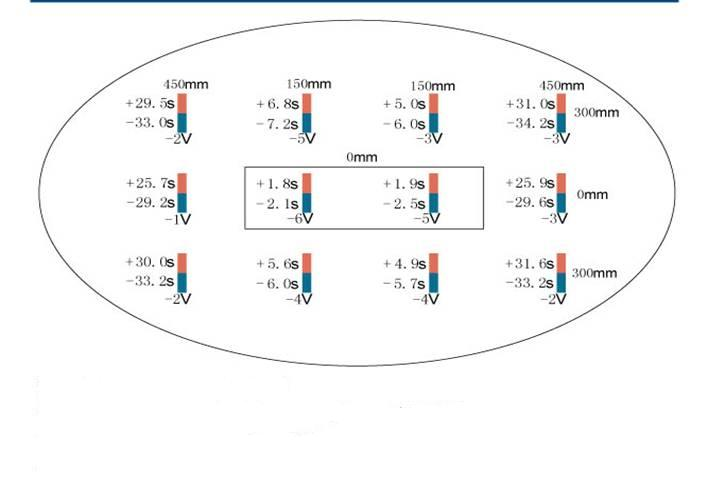

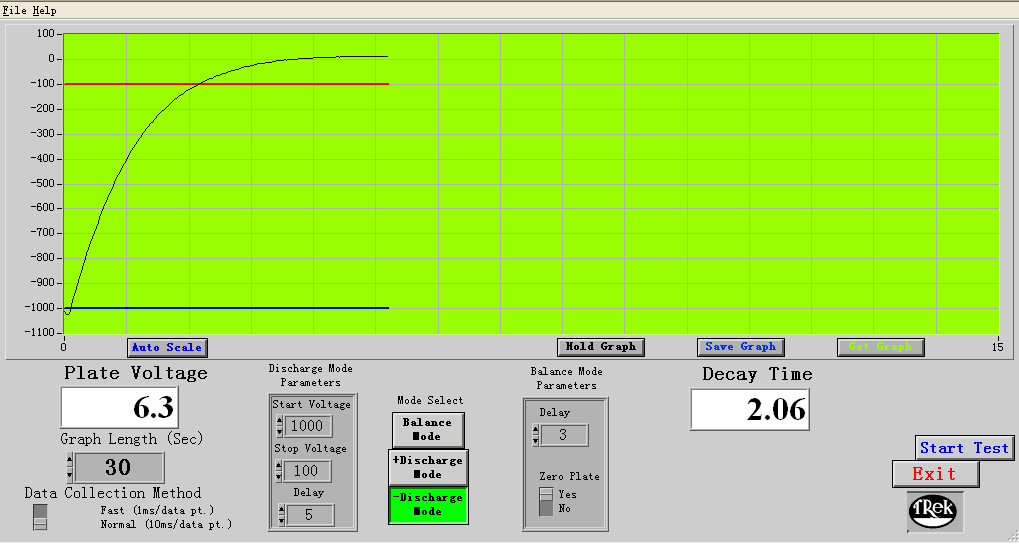

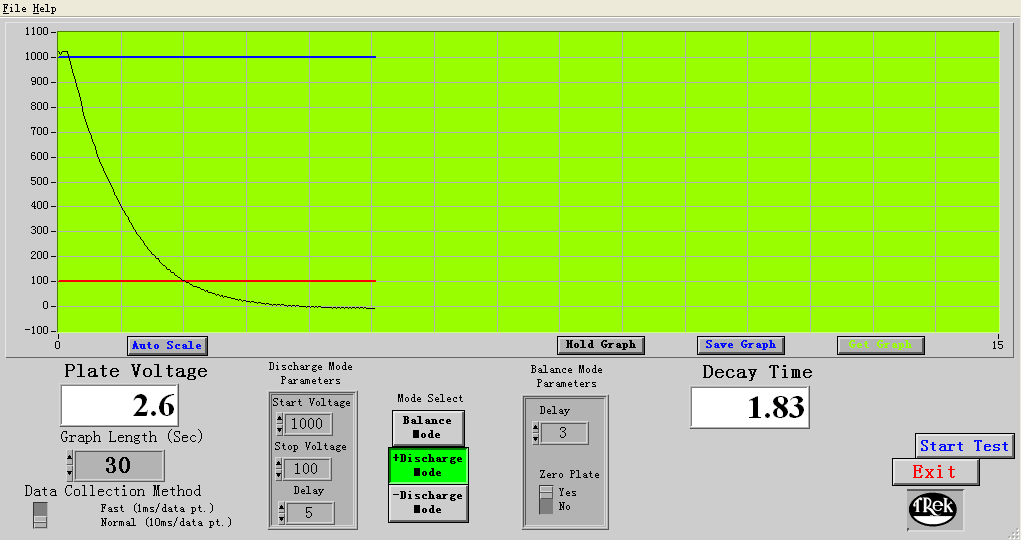

◆ Elimination Effect

Testing instrument ：3M-711 Static tester

Testing standard ：SJ/T10694-2006、GB/T14437-97

Testing voltage ：±1000 — ±100V Attenuation

Testing environment ：Humidity30%—50%  Temperature20±5℃

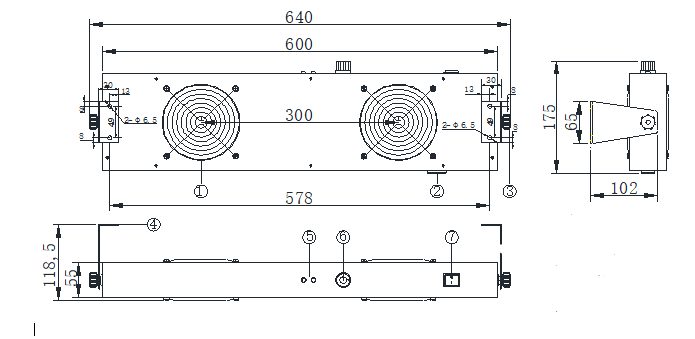

◆ Outline Dimensional Drawing

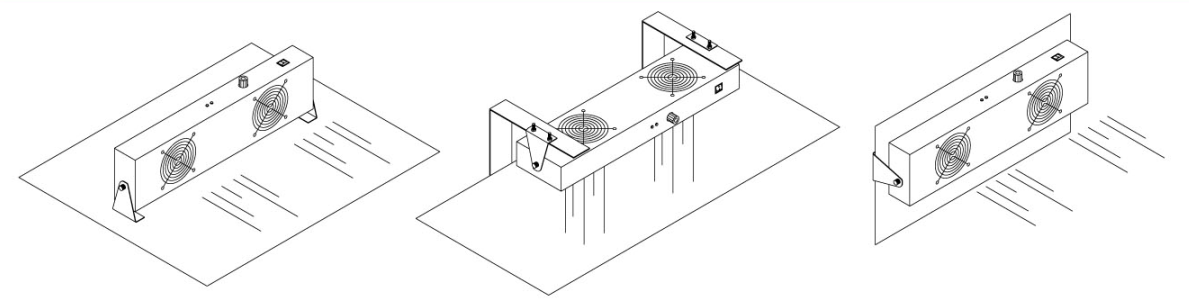

◆ Positioning
